The controller mainboard is the router or lathe control electronic system.

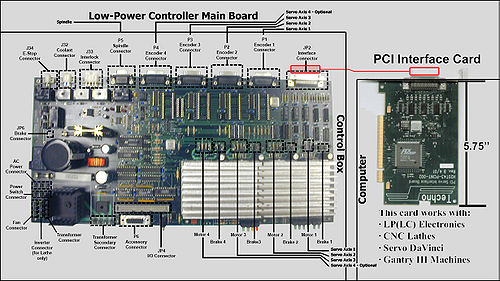

Low Power Board
| Item | Part Number |
|---|---|
| Low Power Board | H27T17-SRVCTRL3 |
| Short PCI card | H20T43-PCINT-002 |

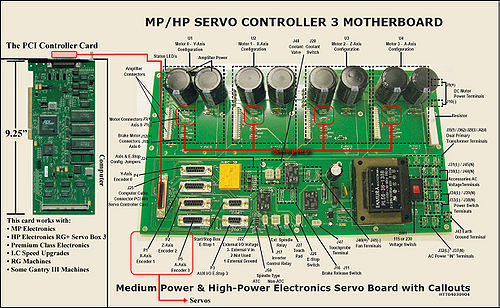

High Power Board
| Item | Part Number |
|---|---|
| High Power Board | |
| Long PCI card | H20T43-PCI403 |
