Revision as of 08:57, 1 September 2011
Scenario
You are repeatedly getting one of the following two message boxes:
OR
Problem
The Emergency stop loop has been tripped or the machine is not connected.
Solution
- Ensure the Emergency Stop Switches are disengaged by pressing them in and then rotating them out. Then try to enable the controller again.
If the problem persists:
If your control box has a ready light, while watching the ready light, click to enable the controller. The exact moment you click to enable, the ready light may blink. You may need an assistant to click to enable while you watch the ready light.

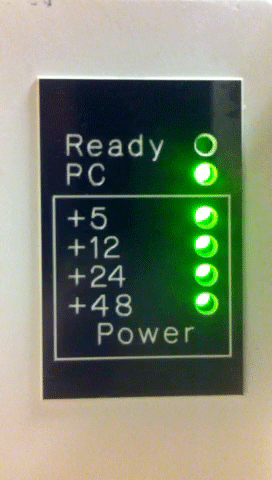

If the ready light blinks one time like this (this video cycles every 10 seconds, be patient):
The problem is the E-stop loop. Note that the E-stop loop runs through not only the emergency stop switch, but all of the motors as well. This is done to prevent a dangerous situation.
Follow this link if the Ready light DOES blink when you attempt to enable. Estop_loop_broken
Follow this link if the ready link does not blink when you attempt to enable. Estop_noblink
Follow this link if you do not have a ready light on your control box. Estop_no_ready_light
